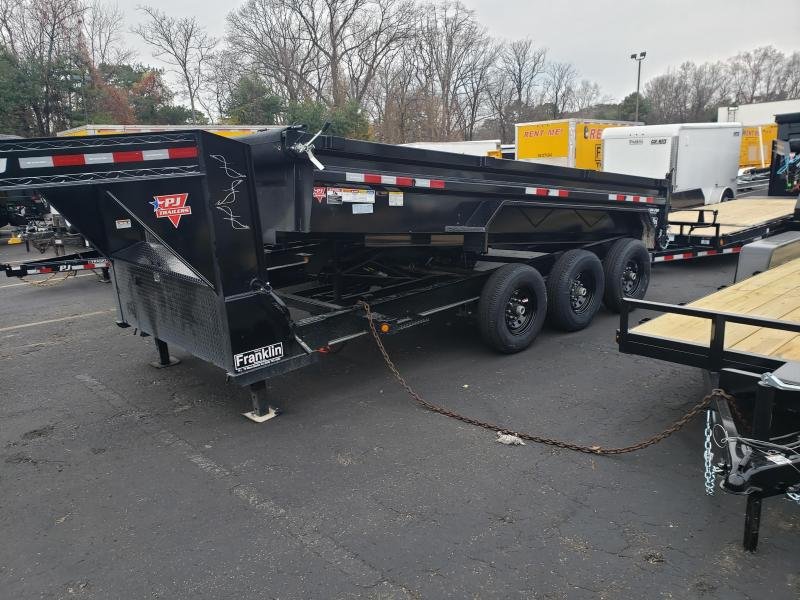

2022 PJ Trailers 83" x 16' 21K Gooseneck Low-Profile Tri-Axle Dump Trailer 2025196
STANDARD FEATURES
21,000 lb. G.V.W.R.
7,000 lb. x 3 G.A.W.R.
Adjustable 2 5/16" Ball Bulldog Coupler
Safety Chains
1 - Drop Leg Jack (7,000 lb.)
3 - Dexter E- Z lube Brake Axle (7,000 lb.)
6 Leaf Slipper Spring Suspension
6 - 16" White Spoke Wheels
6 - 235/80R16 Radial Tires (3,520 lb)
Electric Breakaway Kit w/ Charger
DOT Reflective Tape
1/8" Treadplate Steel Fenders
Lockable Toolbox (Houses Battery and Pump)
2 - Way Gate (Barn Doors & Spread Gate)
6' 6" Slide In Channel Ramps
4 - D-Rings (Welded inside the Box)
40 Dump Pitch
12VDC Hydraulic Pump
5"x17" Hyd.Cylinder w/Scissor & 5"x 21" on 16'
Scissor Lift
12' Control Cable
Mounting Brackets for Roll-up Tarp
8" x 10 lb. I-Beam Frame & Tongue
3" Channel Crossmembers 16" on Center
10-ga. Steel Bed
83" Wide Bed
10-ga. Steel Sides
24" High Sides
DOT Approved Flushmount Lifetime LED Lights
All-Weather Wiring Harness (7-way RV)
Stake Pockets
Sand Blasted, Acid Washed, Powder Coated
Interstate (TM) Deep Cycle Battery
Ultra Low 24"- 28" Deck Height
110V Integrated Trickle Charger
GN Option Equipped with 2 Jacks
GN Equipped w/Lockable Front Toolbox
5 year Dexter Axle Warranty
AVAILABLE OPTIONS
denotes a standard feature
COUPLER OPTIONS
BP 2 5/16" Adjustable (14,000 lb.)*
3" Pintle Eye - Channel-mount (20,000 lb.)
BP 2 5/16" Adj. Cplr w/HD 6 hole Chn Brkt (20k)
